| Hydrophobic Acrylic Foldable - IOL |
Description

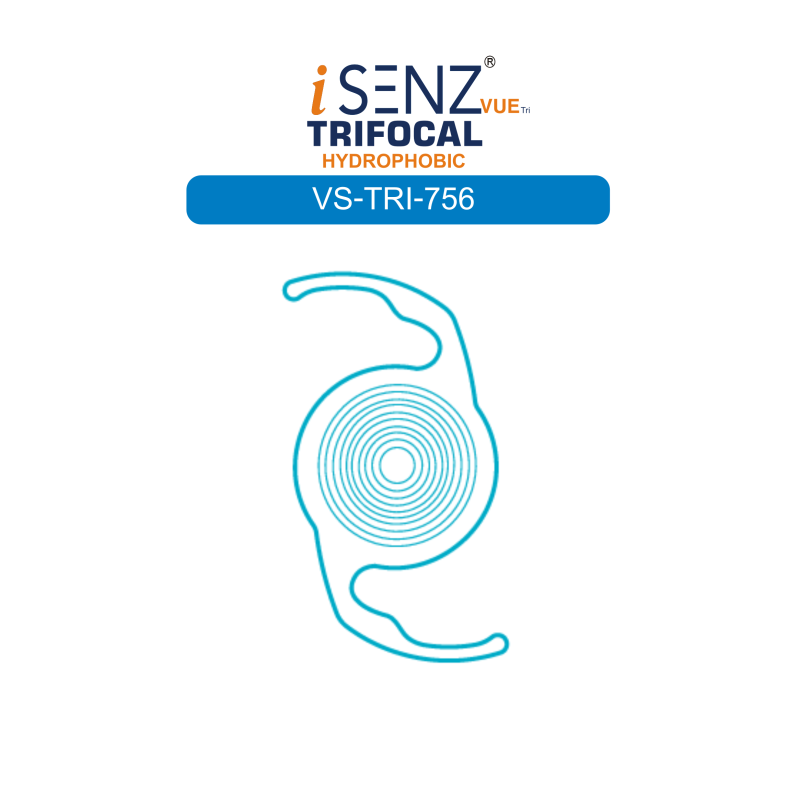

Single Piece Sterile with 360° Square Edge TRIFOCAL Hydrophobic Arcylic Foldable Aspheric Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.
Features
- This optic is TRIFOCAL
- The IOL packed with Preloaded and non-Preloaded injector.
Material
Hydrophobic Acrylic blanks contain UV Absorber with < 0.5% Water Content. optional blue light filtering Chromophore
| Refractive Index | 1.493 |
| Sterilization | Ethylene Oxide |
| POWER RANGE |
| Standard Powers | + 10.00 D to + 35.00 D (0.5 D steps) |
|
Intermediate Addition |
+ 3.50 D Near & + 1.75 D Intermediate |
| INJECTOR |
| Estimated Incision Size | 1.8 – 2.4 mm |
| Injector & Cartridge | Front Load with 2.2 mm Cartridge (preload injector optional) |
| DESIGN |
| Optic Diameter | 6.00 mm |
|
Overall Diameter |
13.00 mm |
| Optic Design | Aspheric – Aberration Neutral Biconvex (+0.00 D to 35.00) |
| Nominal A-constant | 118.8 |
| Haptic Design | Single Haptics with 0° Angulation |
| PCO Prevention | 360° Square Edge |
| Shelf Life | 5 years after sterilization |
| CONSTANTS |
| SRK/T A-Constant | A = 118.8* |
|
Haigis |
a0 = 1.96* a1= 0.400 * a2= 0.100* |
| Hoffer Q | pACD = 5.61* |
| Holladay I | SF = 1.85* |
| SRK/ II A-Constant | A = 119.1 |
