Hydrophilic Acrylic Foldable-IOL |
Description
Single Piece Sterile with 360° Square Edge Hydrophilic Arcylic Foldable YELLOW ASPHERIC Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.
Features
This optic is MONOFOCAL
The IOL is non-Preloaded , which has to be manually loaded into a compatible Injector.
Material
Coploymer of hydroxyethyl methacrylate and methyl methacrylate with 26% water content, UV blocker and optional blue light filter
|
Refractive Index |
1.46 |
|
Sterilization |
Steam |

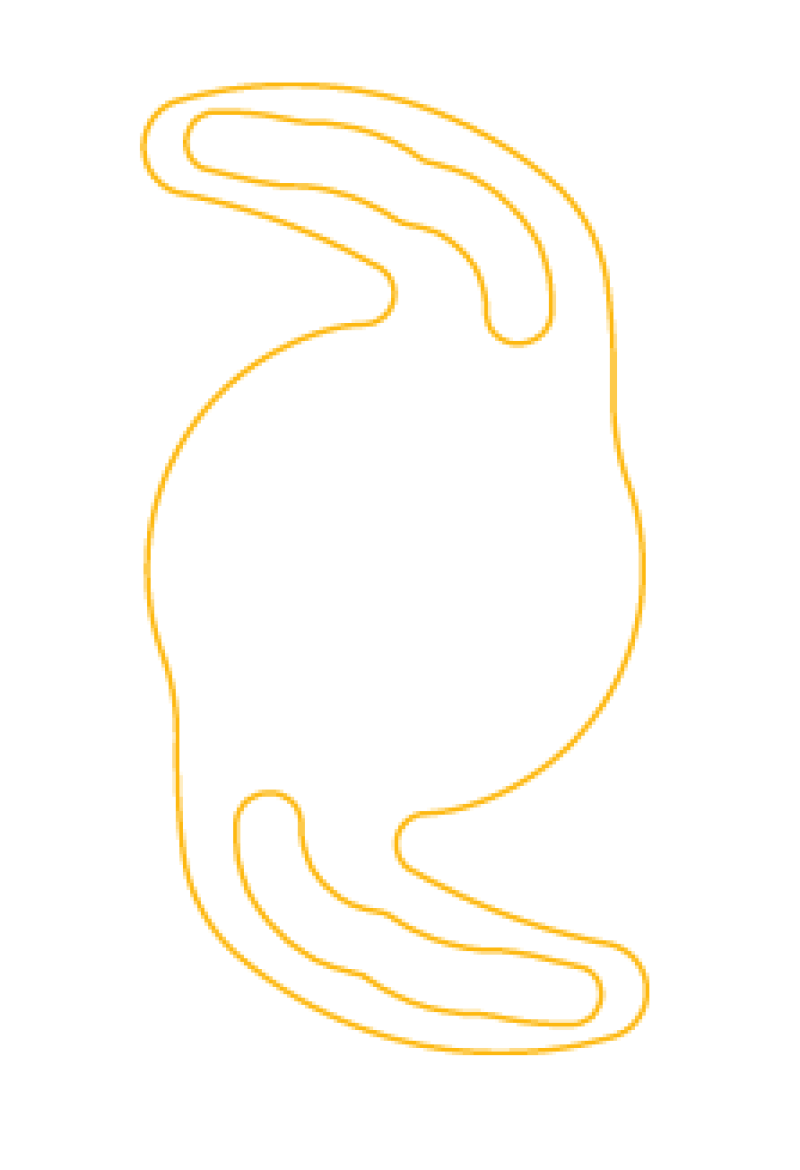

| MODEL; | AFS 61SQY-R | AFS 61SQY | AFS 63SQY-R |
| IMAGE |
|
|
|
| OPTIC DIAMETER | 6.00 mm | 6.00 mm | 6.00 mm |
| OVERALL DIAMETER | 12.50 mm | 12.50 mm | 13.00 mm |
| HAPTIC DESIGN | Double Haptics | Double Haptics | Double Haptics |

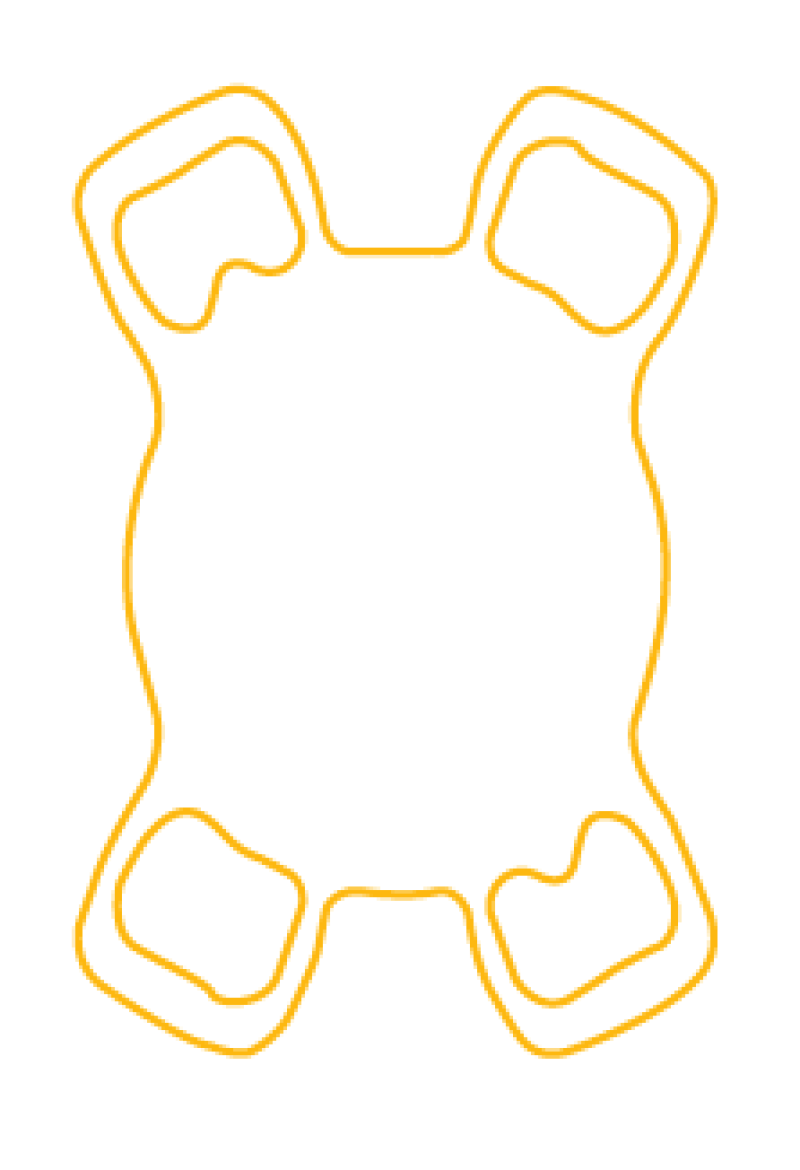

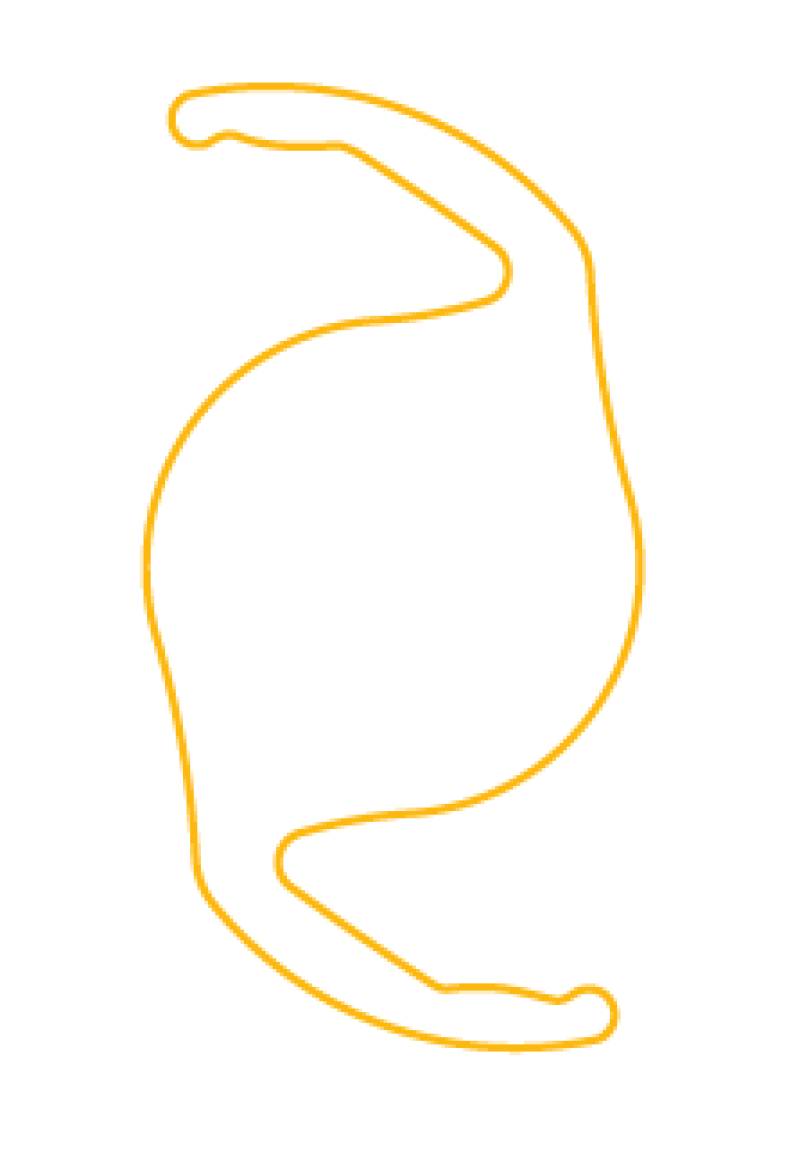

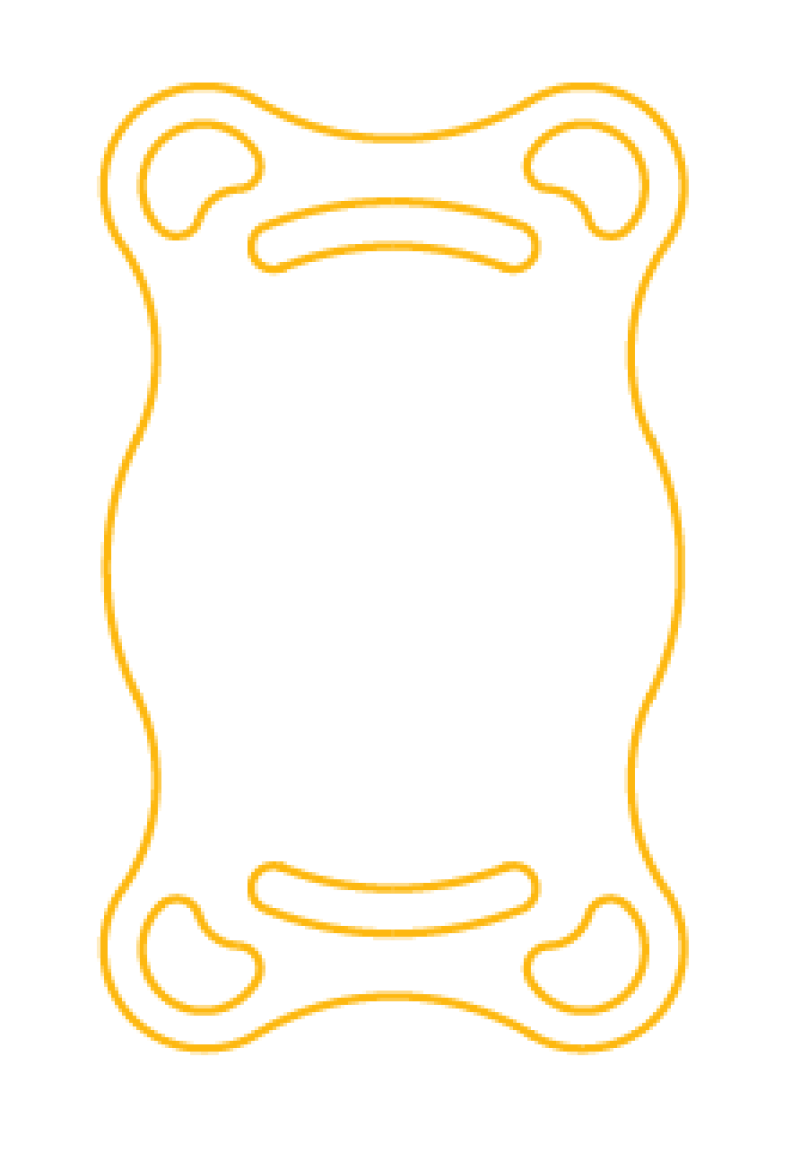

| MODEL; | AFS 63SQY | AFS 65SQY | AFS 66SQY |
| IMAGE |
|
|
|
| OPTIC DIAMETER | 6.00 mm | 6.00 mm | 6.00 mm |
| OVERALL DIAMETER | 13.00 mm | 10.50 mm | 11.00 mm |
| HAPTIC DESIGN | Single Haptics | Four Haptics | Four Haptics |
| POWER RANGE |
| Standard Powers | + 10.00 D to + 35.00 D (0.5 D steps) |
| Extreme Power | - 10.0 D to +9.00 D (1.0 D steps) + 36.00 D to +40.00 D (1.0 D steps) |
| INJECTOR |
| Estimated Incision Size | 1.8 – 2.2 mm |
| Injector & Cartridge | Front Load and Back Load with 2.2-2.4 mm Cartridge |
| DESIGN |
| Optic Design | Negative Aspheric – Aberration Neutral Convex-concave (-10.0 D -> -1.0 D) Biconvex (0.0 D -> +45.0 D) |
| Nominal A-constant | 118.8 |
| Haptic Design | Single Haptics with 0° Angulation |
| PCO Prevention | 360° Square Edge |
| Shelf Life | 3 years after sterilization |
| CONSTANTS |
| SRK/T A-Constant |
A = 118.0* |
| Haigis |
a0 = 0.568* |
| Hoffer Q |
pACD = 4.80* |
| Holladay I |
SF = 1.02* |
| SRK/ II A-Constant |
A = 117.88 |
